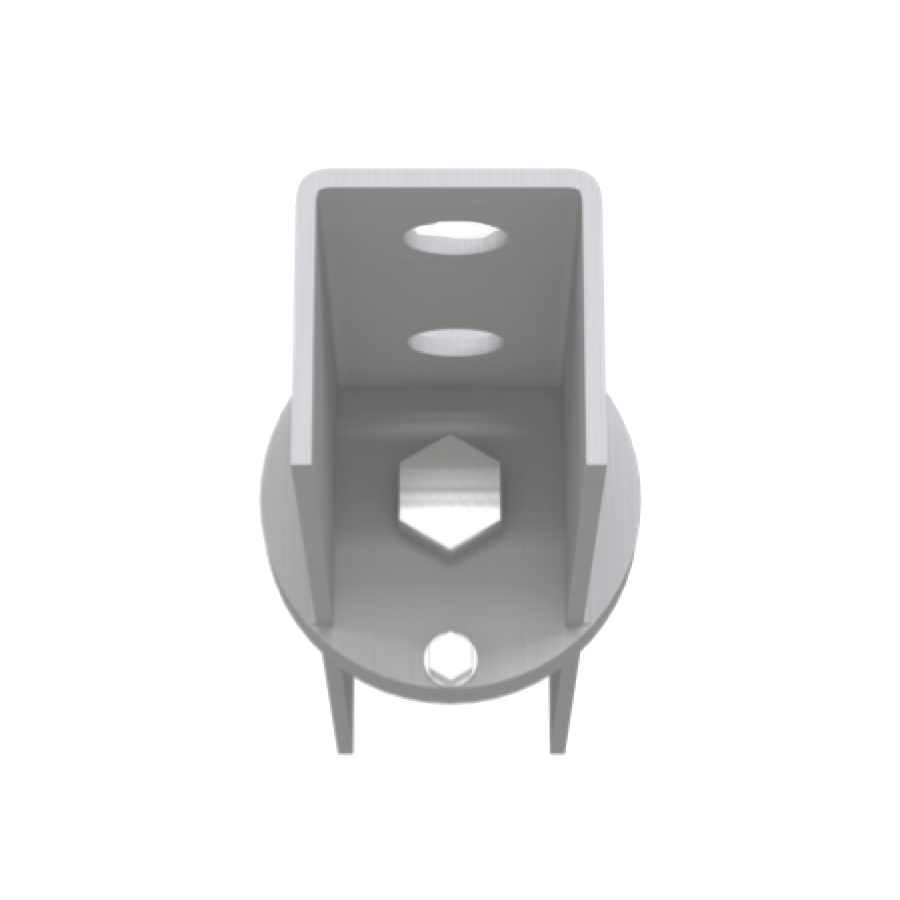

Single Rotating Bracket Kit Two Bolt Application

Request A Quote

Product Code: 0214RBC17SSHDG

Clamps to any diagonal, horizontal, or vertical structure, both ends rotate 360 degrees, easy installation of unistrut. No Welding Required.

Category:

Product description

Additional information

Technical Specs

SINGLE ROTATING BRACKET KIT 2 BOLT APPLICATION
MODEL NUMBER – 0214RBC17SSHDG
MATERIAL – A36
WEIGHT – 3 LBS ; 1.36 Kg
PRODUCT DIMENSION – 8 ½” X 2 7/8” x 1 13/16”
FINISH – HDG ASTM A123
THICKNESS -¼”
HOLE DIAMETER – BASE 33/64” SIDES 9/16”
FITS – 1 5/8” X 1 5/8” CHANNEL
VERTICAL LOAD LIMIT 3,000 Lbs,
2IN – 0.3754 SPAN, Ft, 4,110 PEAK LOAD, Lbf, 1,540 TORQUE, Ft – Lbs
HORIZONTAL LOAD LIMIT 3,000 Lbs
2IN – 0.3750 SPAN, Ft, 3,405 PEAK LOAD, Lbf, 1,280 TORQUE, Ft – Lbs
ASTM – A123, A36; ANSI – N45.2/NFPA 70 –NEC Article 384
SAFETY FACTOR – 4:1
MATERIAL REQUIRED FOR INSTALLATION – 304 OR 316 Stainless Steel Hex Head
Bolt ½” diameter, 1 ¼” length; ASME B18.2.1; UNS S3160
*Custom load testing using a Satec, Satec Model 120HVL, S/N: 1263, calibration due 4/27/18
Testing by Metallurgical Engineering Services, Inc. Firm Registration No. F-2674 Richardson, Texas

For a complete copy of metal and material testing results please email your requests to info@barkersupportsystems.com
