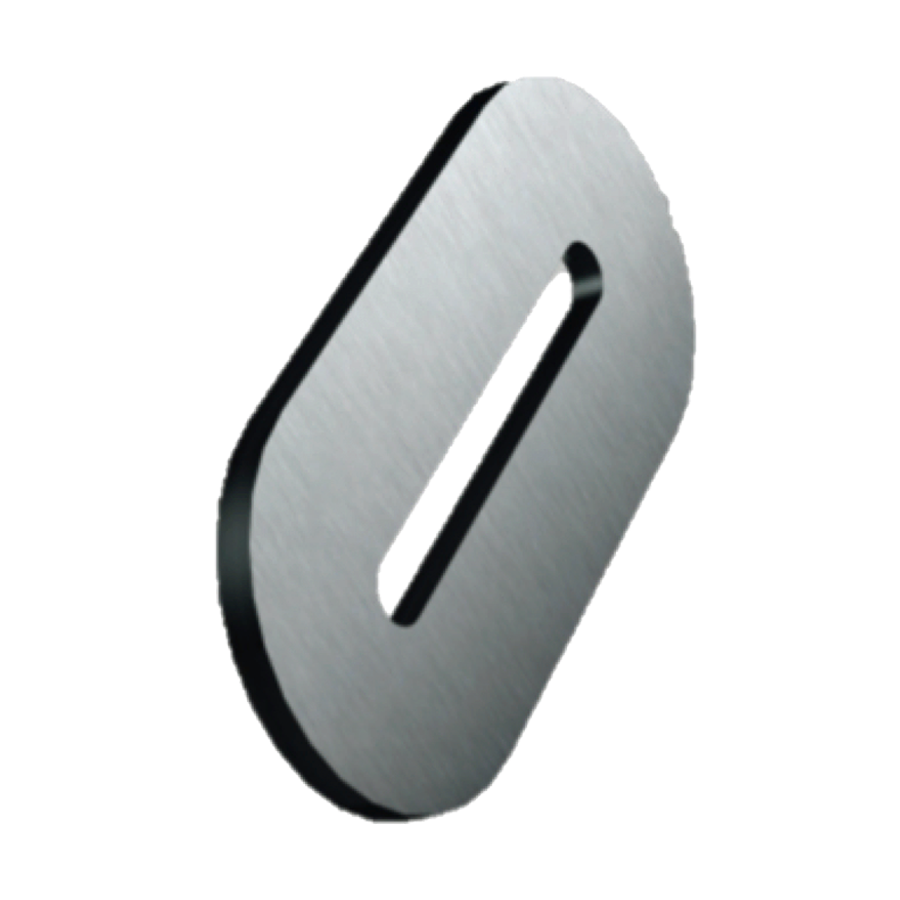

Double Offset Plate

Request A Quote

Product Code: 07OS17DSHDG

Works with Double Offset Bracket Kit.



Category:

Additional information

Technical Specs

PRODUCT NAME – Double Offset Plate
MODEL NUMBER – 07OS17DSHDG
MATERIAL – A36
WEIGHT – 2 LBS .90 Kg
DIMENSIONS – 8” x 4 ¼”
FINISH – HDG ASTM A123
THICKNESS – ½” OVAL
HOLE DIAMETER – ½” OVAL
FITS – Double Rotating Bracket
VERTICAL LOAD LIMIT – 1,500Lbs
4IN – 2,300 PEAK LOAD, Lbf; 1,000 TORQUE Ft-Lbs;
HORIZONTAL LOAD LIMIT – 1500 Lbs
4IN – 2,300 PEAK LOAD, Lbf; 1,000 TORQUE Ft-Lbs;
ASTM – A123, A36; ANSI – N45.2/NFPA 70 –NEC Article 384
SAFETY FACTOR – 4:1
MATERIAL REQUIRED FOR INSTALLATION – (2) 304 OR 316 Stainless Steel Hex Head Bolt ½” diameter, 1 ¼” length, ASME B18.2.1; UNS S3160

*Custom load testing using a Satec , Satec Model 120HVL, S/N: 1263,
calibration due 4/27/18

Testing by Metallurgical Engineering Services, Inc. Firm Registration No. F-2674
Richardson, Texas ; For a complete copy of metal and material testing results please email your requests to info@barkersupportsystems.com
