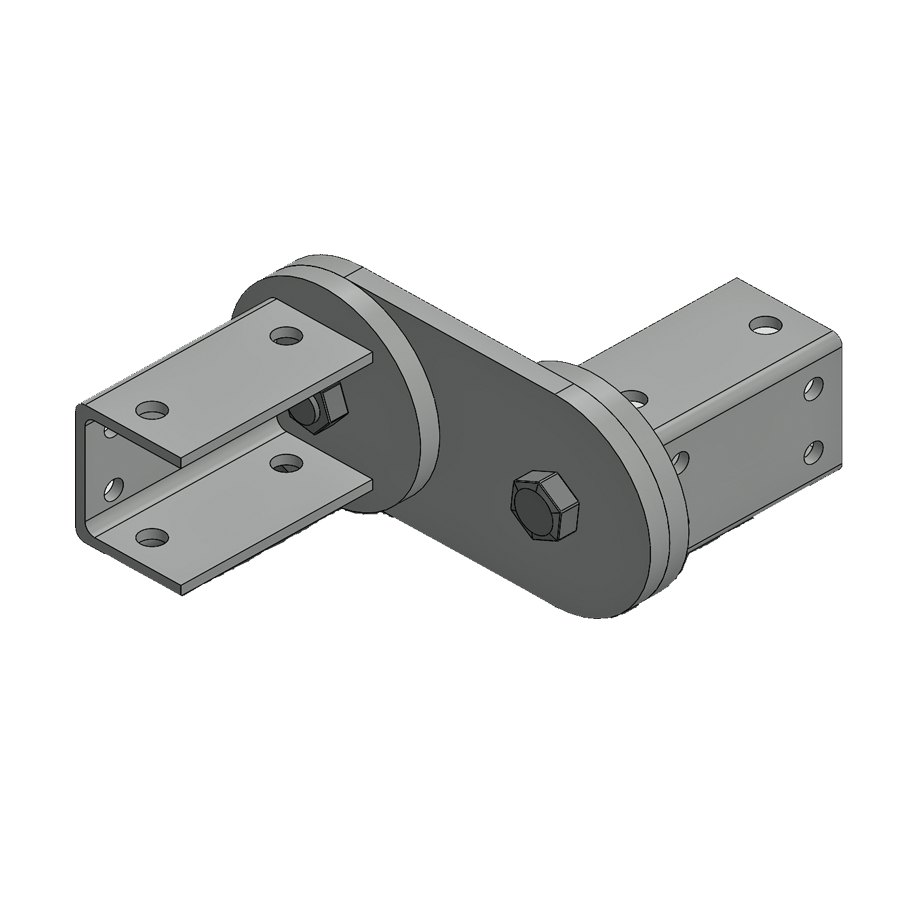

Double Offset Bracket Kit

Request A Quote

Product Code: 08OSC17DSHDG

Clamps to structure, reducing the need for multiple offsets and able to run multiple lines, during the installation of conduit, cable tray, tubing tray, and pipe.



Category:

Additional information

Technical Specs

PRODUCT NAME – Double Offset Bracket
MODEL NUMBER – 08OSC17DSHDG
MATERIAL – A36
WEIGHT – 6lb 14 oz; 3.11 Kg
DIMENSIONS – 8” x 9 ½”
FINISH – HDG ASTM A123
THICKNESS –1/4”
HOLE DIAMETER –BASE 33/64” SIDES 9/16”
FITS – 1 5/8” x 3 ¼” Double Channel
VERTICAL LOAD LIMIT – 2,000 Lbs
4IN – 0.3854 SPAN, Ft; 4,462 PEAK LOAD, Lbf; 1,720 TORQUE Ft-Lbs;
HORIZONTAL LOAD LIMIT – 2,000 Lbs
4IN – 0.3542 SPAN, Ft; 3,629 PEAK LOAD, Lbf; 1,290 TORQUE Ft-Lbs;
ASTM – A123, A36; ANSI – N45.2/NFPA 70 –NEC Article 384
SAFETY FACTOR – 4:1
MATERIAL REQUIRED FOR INSTALLATION – (2) 304 OR 316 Stainless Steel Hex Head Bolt ½” diameter, 1 ¼” length, ASME B18.2.1; UNS S3160

*Custom load testing using a Satec , Satec Model 120HVL, S/N: 1263,
calibration due 4/27/18

Testing by Metallurgical Engineering Services, Inc. Firm Registration No. F-2674
Richardson, Texas ; For a complete copy of metal and material testing results please email your requests to info@barkersupportsystems.com
