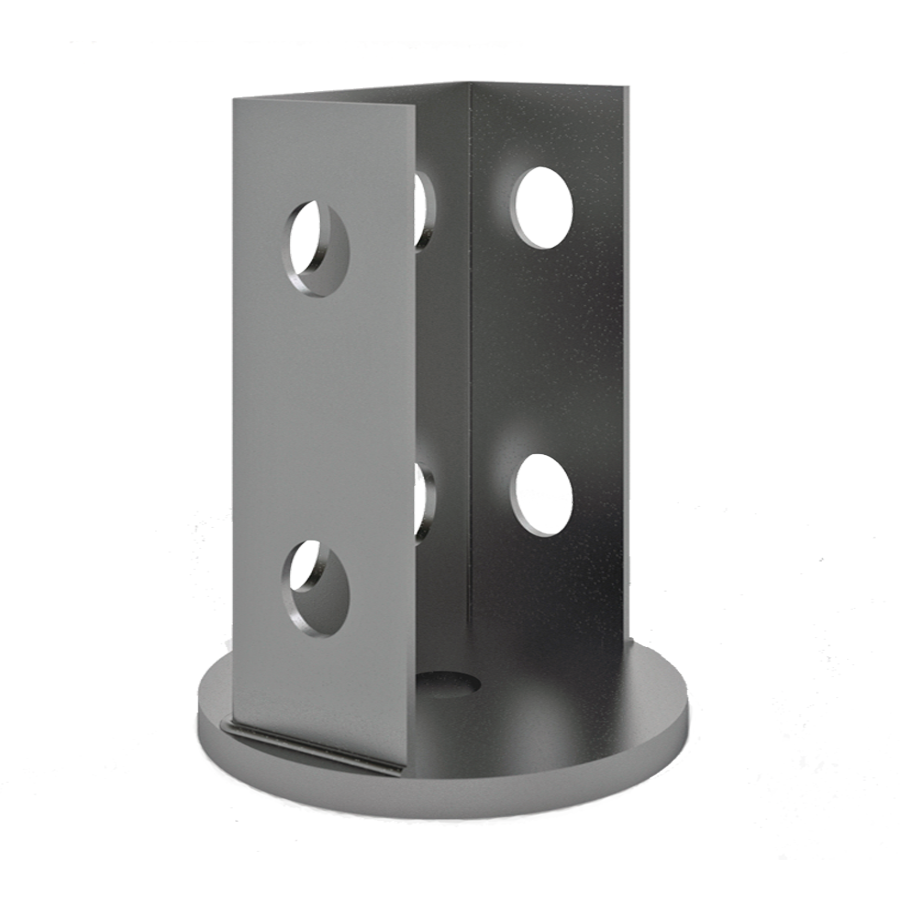

Double Rotating Bracket Component

Request A Quote

Product Code: 05RBA17DSHDG

For the installation of double unistrut, bolts with one hole to any structure no matter the angle, rotates 360 degrees. No Welding Required.



Category:

Additional information

Technical Specs

PRODUCT NAME – Double Strut Rotating Bracket Component
MODEL NUMBER – 05RBA17DSHDG
MATERIAL – A36
WEIGHT – 2 Lbs 6oz. .90Kg
DIMENSIONS – 4 ½” x 3 ¾”
Finish – HDG ASTM A123
THICKNESS – ¼”
HOLE DIAMETER – Base 33/64” Sides 9/16”
FITS – 3 ¼” x 3 ¼” Channel
VERTICAL LOAD LIMIT – 3,500 Lbs
4IN – 0.3854 SPAN, Ft; 4,462 PEAK LOAD, Lbf; 1,720 TORQUE Ft-Lbs;
HORIZONTAL LOAD LIMIT – 3,000 Lbs
4IN – 0.3542 SPAN, Ft; 3,629 PEAK LOAD, Lbf; 1,290 TORQUE Ft-Lbs;
ASTM – A123, A36; ANSI – N45.2/NFPA 70 –NEC Article 384
SAFETY FACTOR – 4:1
MATERIAL REQUIRED FOR INSTALLATION –304 OR 316 Stainless Steel Hex Head Bolt ½” diameter, 1 ¼” length, ASME B18.2.1; UNS S3160

*Custom load testing using a Satec , Satec Model 120HVL, S/N: 1263,
calibration due 4/27/18

Testing by Metallurgical Engineering Services, Inc. Firm Registration No. F-2674
Richardson, Texas ; For a complete copy of metal and material testing results please email your requests to info@barkersupportsystems.com
