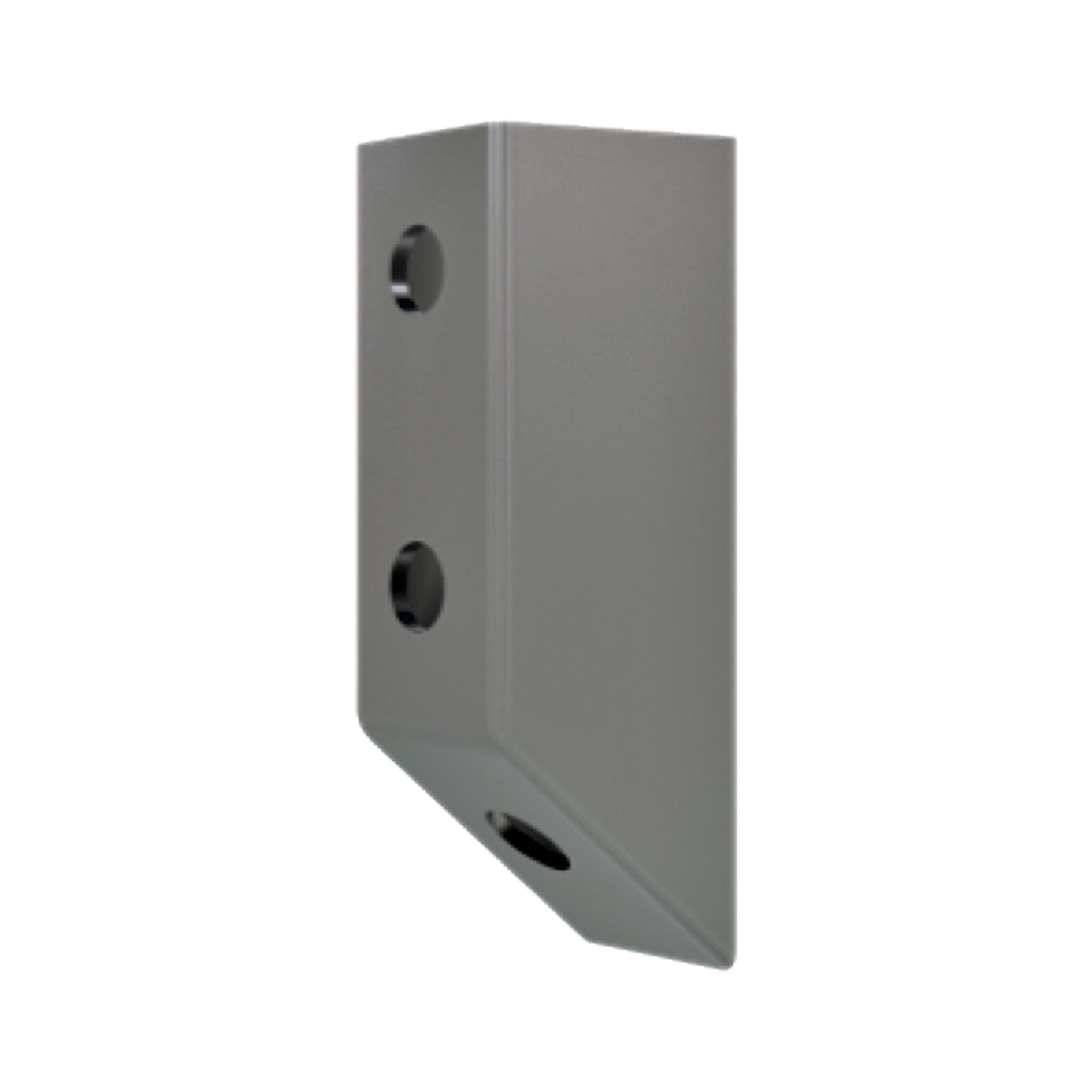

45 Degree Bracket

Request A Quote

Product Code: 094517SSHDG

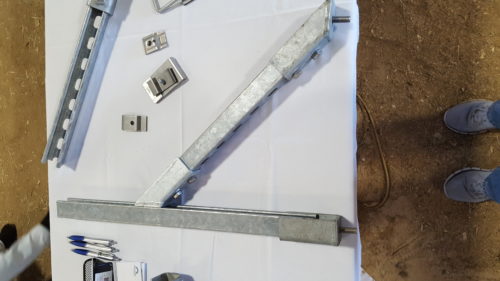

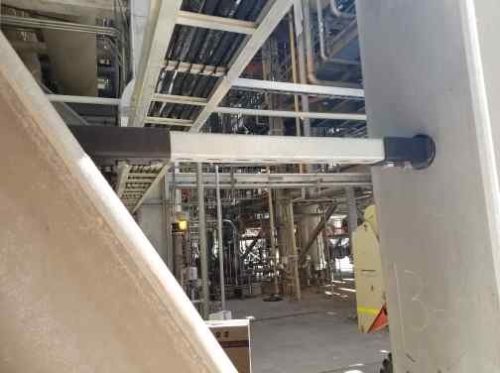

Bolts to unistrut, or structure. Compatible with every component of support systems. Very versatile can be installed as kickers, braces, etc.



Category:

Additional information

Technical Specs

PRODUCT NAME – 45 Degree Bracket
MODEL NUMBER – 094517SSHDG
MATERIAL – A36
WEIGHT – 1 Lb 12 Oz; .79 Kg
DIMENSIONS – 6 3/8” x 2 1/8”
FINISH – HDG ASTM A123
THICKNESS – ¼”
HOLE DIAMETER – Base 33/64” Sides 9/16”
FITS – 1 5/8” x 1 5/8” Channel
VERTICAL LOAD LIMIT – 3,500 Lbs
2 IN – 0.3754 SPAN, Ft; 4,110 PEAK LOAD, Lbf; 1,540 TORQUE Ft-Lbs;
HORIZONTAL LOAD LIMIT – 2,500 Lbs
2IN – 0.3750 SPAN, Ft; 3,405 PEAK LOAD, Lbf 1,280 TORQUE Ft-Lbs;
ASTM – A123, A36; ANSI – N45.2/NFPA 70 –NEC Article 384
SAFETY FACTOR – 4:1
MATERIAL REQUIRED FOR INSTALLATION – (1) 304 OR 316 Stainless Steel Hex Head Bolt ½” diameter, 1 ¼” length, ASME B18.2.1; UNS S3160

*Custom load testing using a Satec , Satec Model 120HVL, S/N: 1263,
calibration due 4/27/18

Testing by Metallurgical Engineering Services, Inc. Firm Registration No. F-2674
Richardson, Texas ; For a complete copy of metal and material testing results please email your requests to info@barkersupportsystems.com
