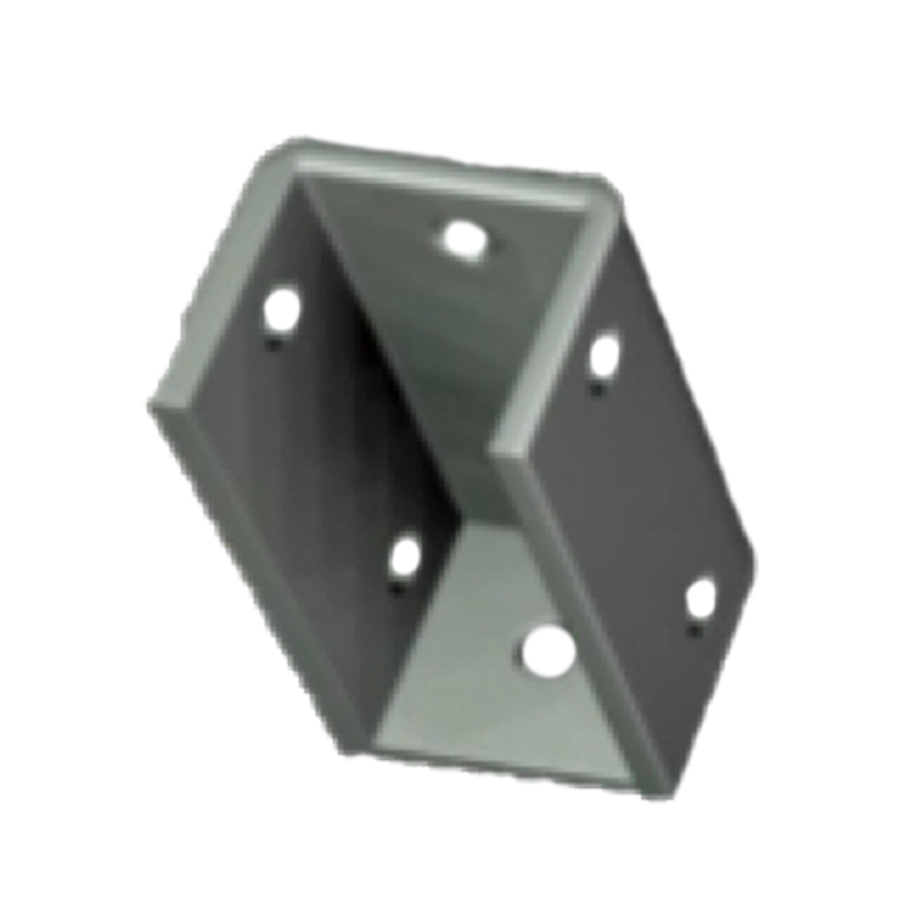

Square Bracket

Request A Quote

Product Code: 11SQA17SSHDG

For the installation of single unistrut, it bolts flush against flat surfaces at any angle, on any structure, rotates 360 degrees.



Category:

Additional information

Technical Specs

PRODUCT NAME – Square Rotating Bracket Component
MODEL NUMBER – 11SQA17SSHDG
MATERIAL – A36
WEIGHT – 1 Lb 6 oz 1.6 Kg
DIMENSIONS – 4 ¼” x 2 1/8”
FINISH – HDG ASTM A123
THICKNESS – ¼”
HOLE DIAMETER – Base 33/64”” Sides 9/16”
FITS – 1 5/8” x 1 5/8” CHANNEL
VERTICAL LOAD LIMIT – 3,000 Lbs
2IN – 0.3754 SPAN, Ft; 4,110 PEAK LOAD, Lbf; 1,540 TORQUE Ft-Lbs;
HORIZONTAL LOAD LIMIT – 2,500 Lbs
2IN – 0.3750 SPAN, Ft; 3,405 PEAK LOAD, Lbf; 1,280 TORQUE Ft-Lbs;
ASTM – A123, A36; ANSI – N45.2/NFPA 70 –NEC Article 384
SAFETY FACTOR – 4:1
MATERIAL REQUIRED FOR INSTALLATION – ( 1) 304 OR 316 Stainless Steel Hex Head Bolt ½” diameter, 1 ¼” length, ASME B18.2.1; UNS S3160

*Custom load testing using a Satec , Satec Model 120HVL, S/N: 1263,
calibration due 4/27/18

Testing by Metallurgical Engineering Services, Inc. Firm Registration No. F-2674
Richardson, Texas ; For a complete copy of metal and material testing results please email your requests to info@barkersupportsystems.com
