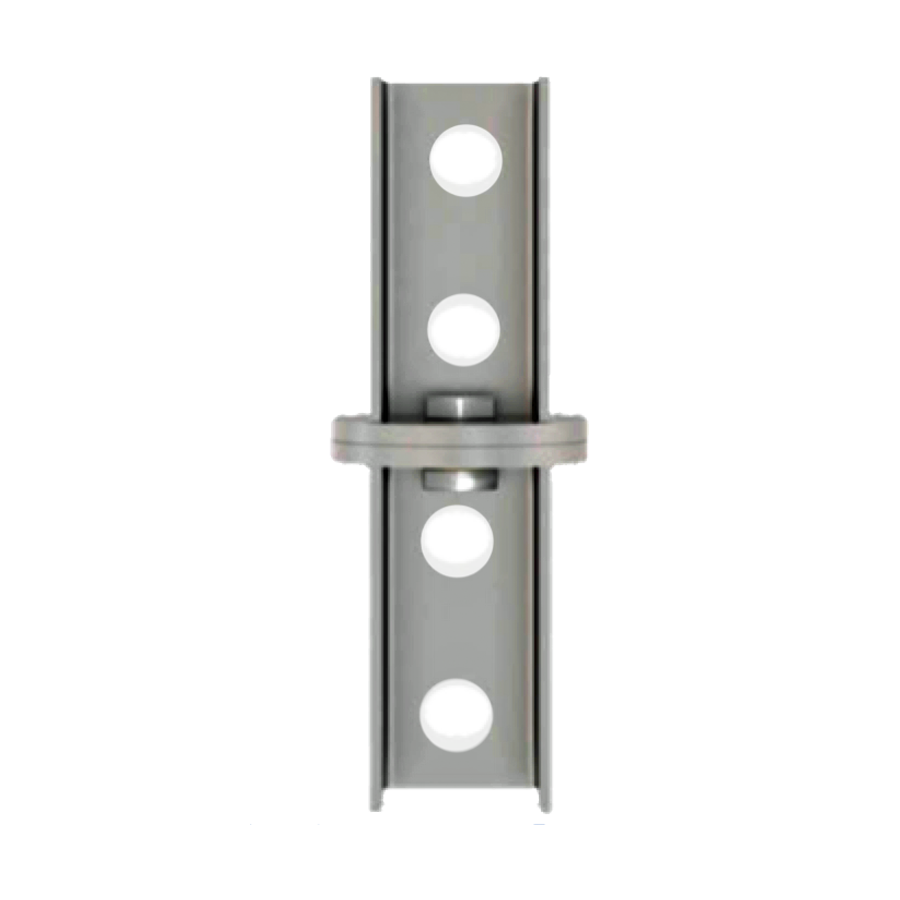

Single Rotating Bracket Kit

Request A Quote

Product Code: 02RBC17SSHDG

Clamps to any diagonal, horizontal or vertical structure, both ends rotate 360 degrees, easy installation. No Welding Required.

Category:

Additional information

Technical Specs

SINGLE ROTATING BRACKET KIT
02RBC17SSHDG
MATERIAL – A36
WEIGHT – 3 LBS ; 1.36 Kg
PRODUCT DIMENSION – 8 ½” X 2 7/8” x 1 13/16”
FINISH – HDG ASTM A123
THICKNESS -¼”
HOLE DIAMETER – BASE 33/64” SIDES 9/16”
FITS – 1 5/8” X 1 5/8” CHANNEL
VERTICAL LOAD LIMIT 3,000 Lbs,
2IN – 0.3754 SPAN, Ft, 4,110 PEAK LOAD, Lbf, 1,540 TORQUE, Ft – Lbs
HORIZONTAL LOAD LIMIT 3,000 Lbs
2IN – 0.3750 SPAN, Ft, 3,405 PEAK LOAD, Lbf, 1,280 TORQUE, Ft – Lbs
ASTM – A123, A36; ANSI – N45.2/NFPA 70 –NEC Article 384
SAFETY FACTOR – 4:1
MATERIAL REQUIRED FOR INSTALLATION – 304 OR 316 Stainless Steel Hex Head Bolt ½” diameter, 1 ¼” length; ASME B18.2.1; UNS S3160

*Custom load testing using a Satec , Satec Model 120HVL, S/N: 1263,
calibration due 4/27/18

Testing by Metallurgical Engineering Services, Inc. Firm Registration No. F-2674
Richardson, Texas ; For a complete copy of metal and material testing results please email your requests to info@barkersupportsystems.com
